Installation Guide:
https://iboffrcc.com/pages/-guide-install-nvme-riser-to-your-thick-imac-a1311-a1312
What is it?

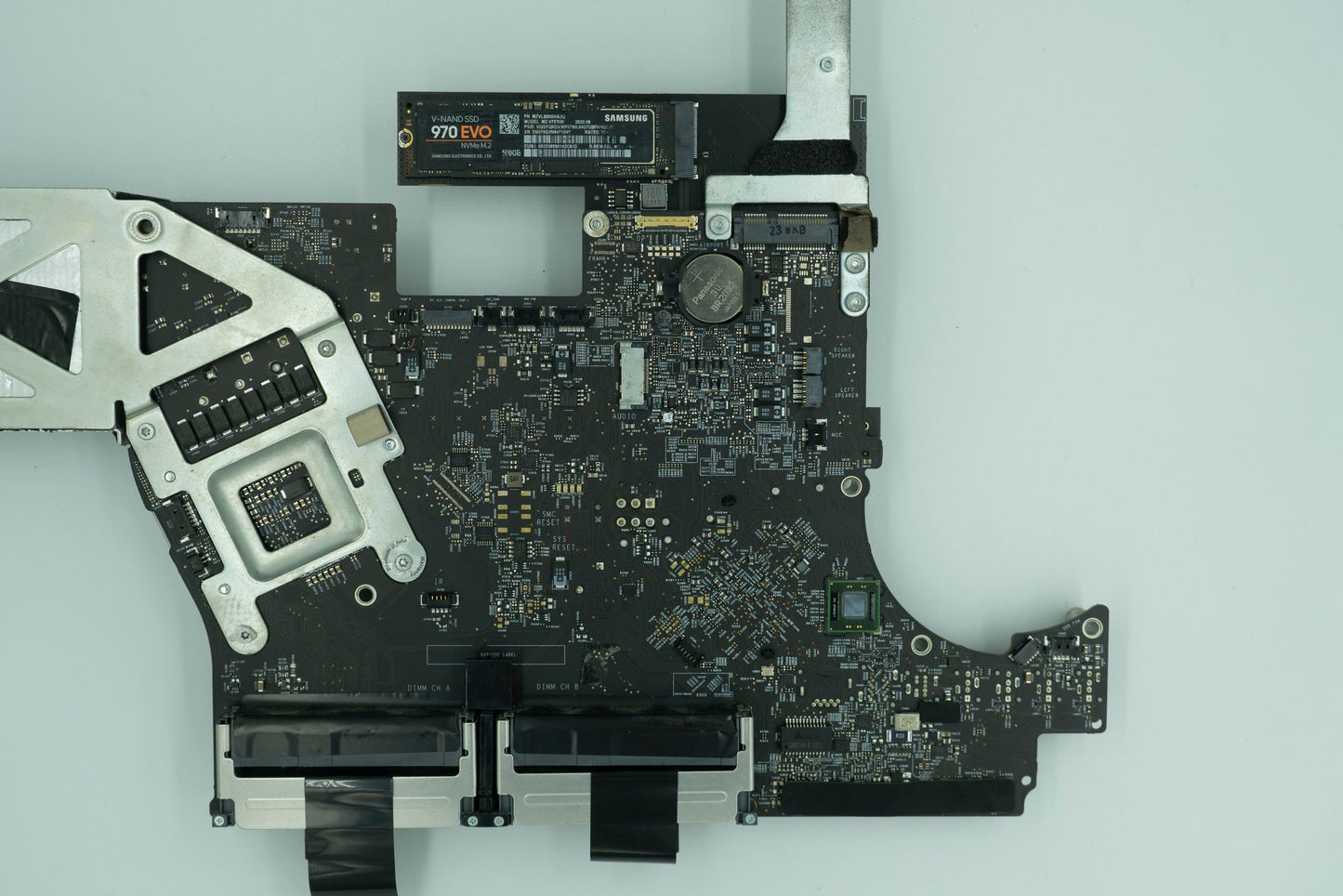

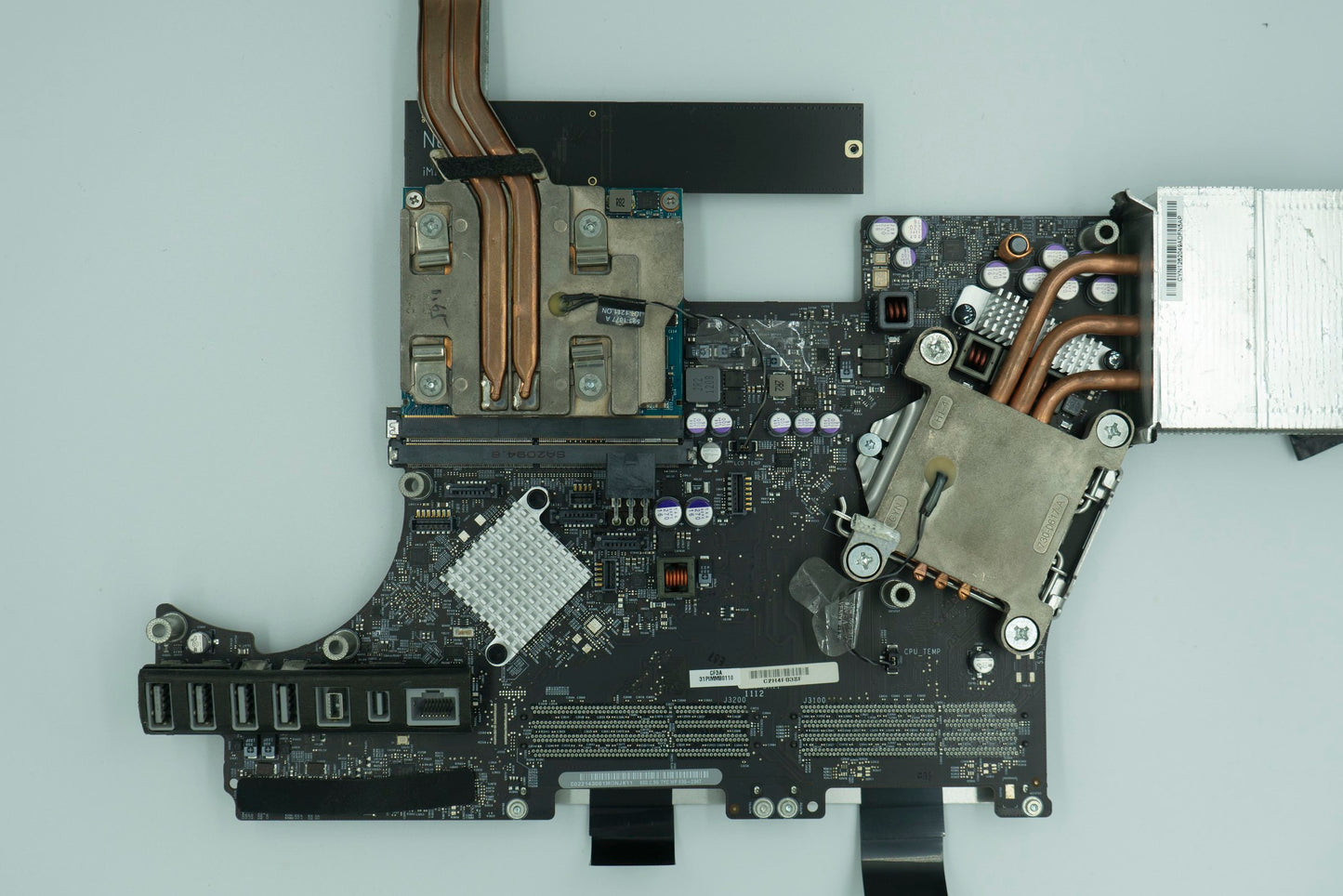

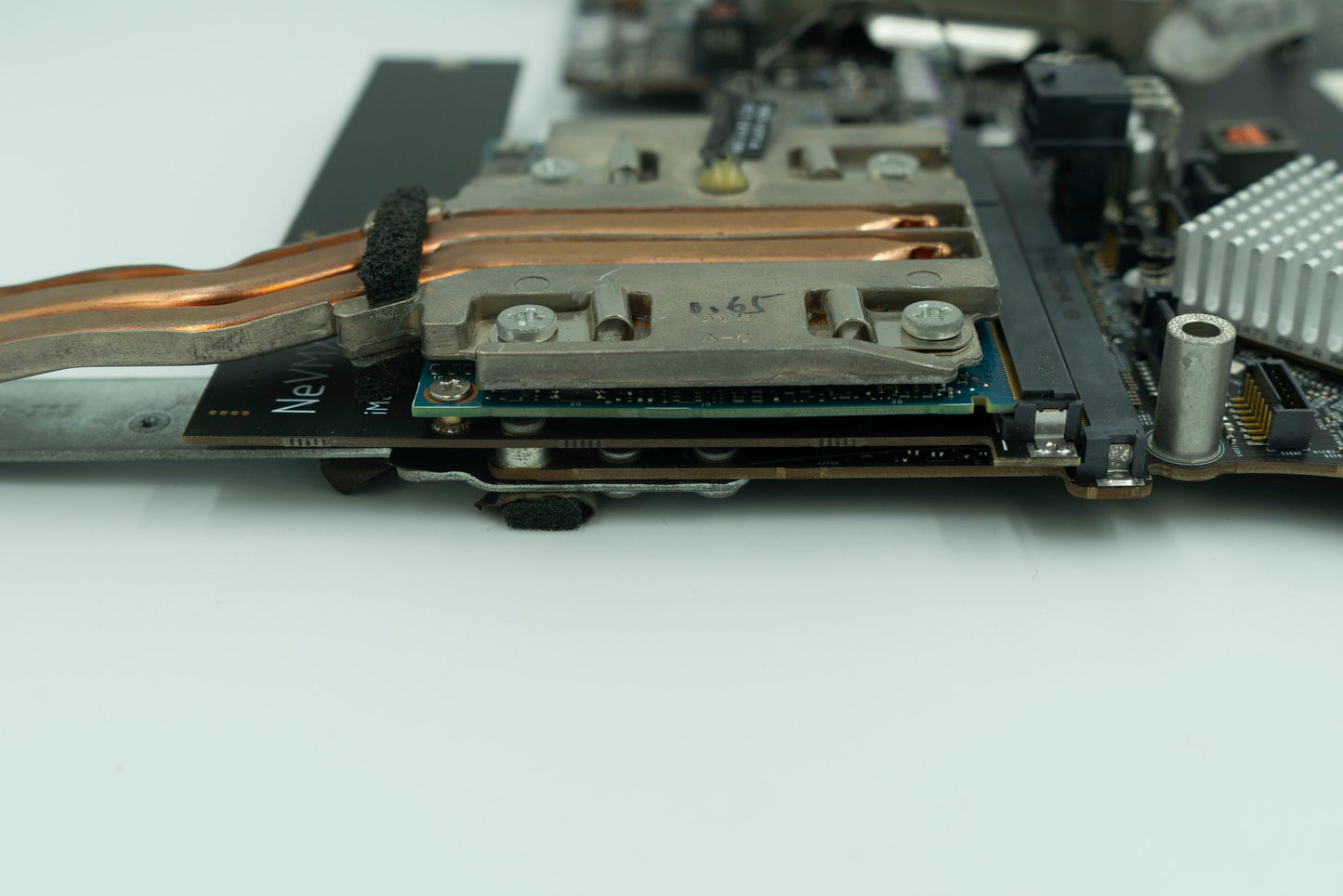

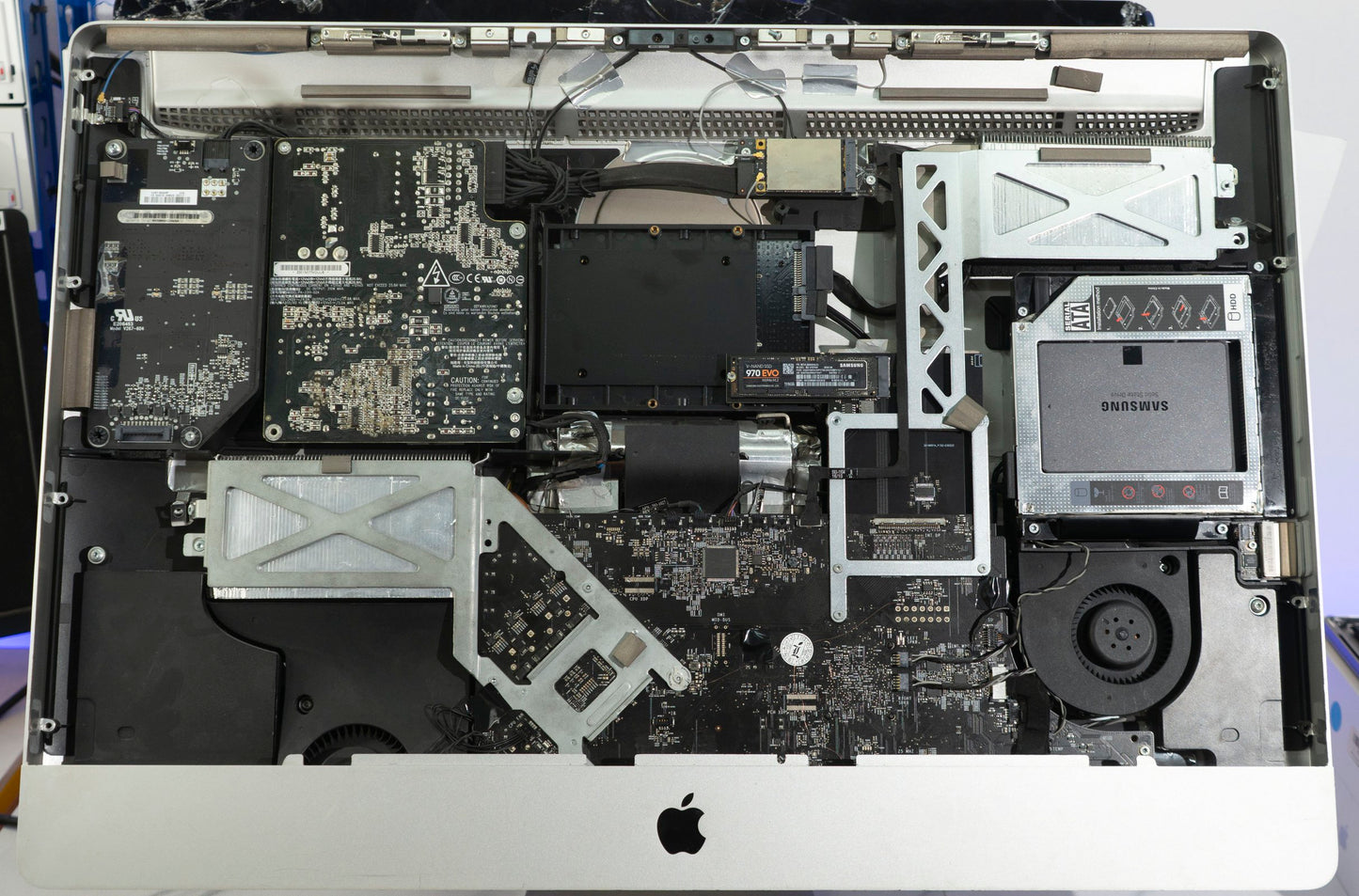

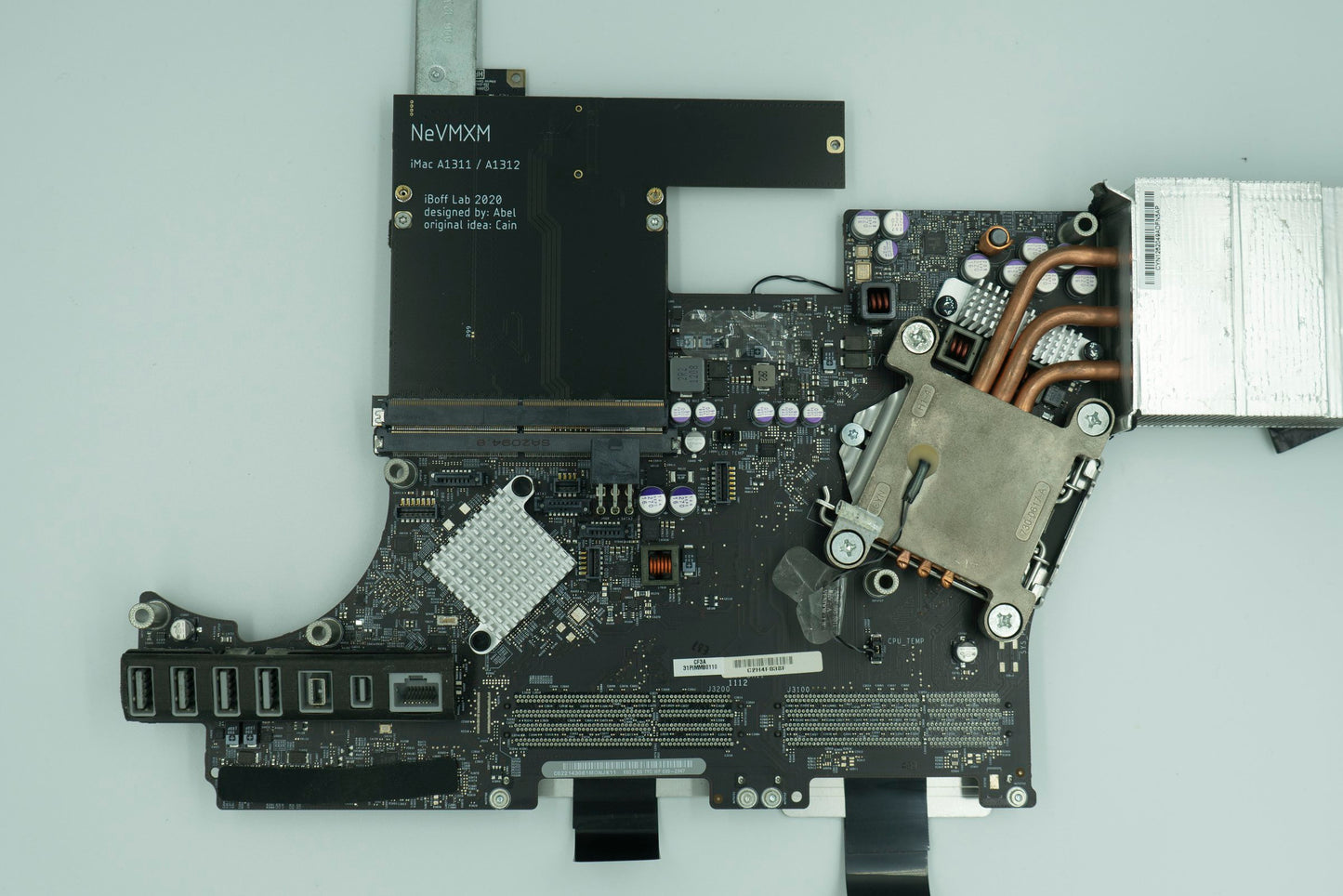

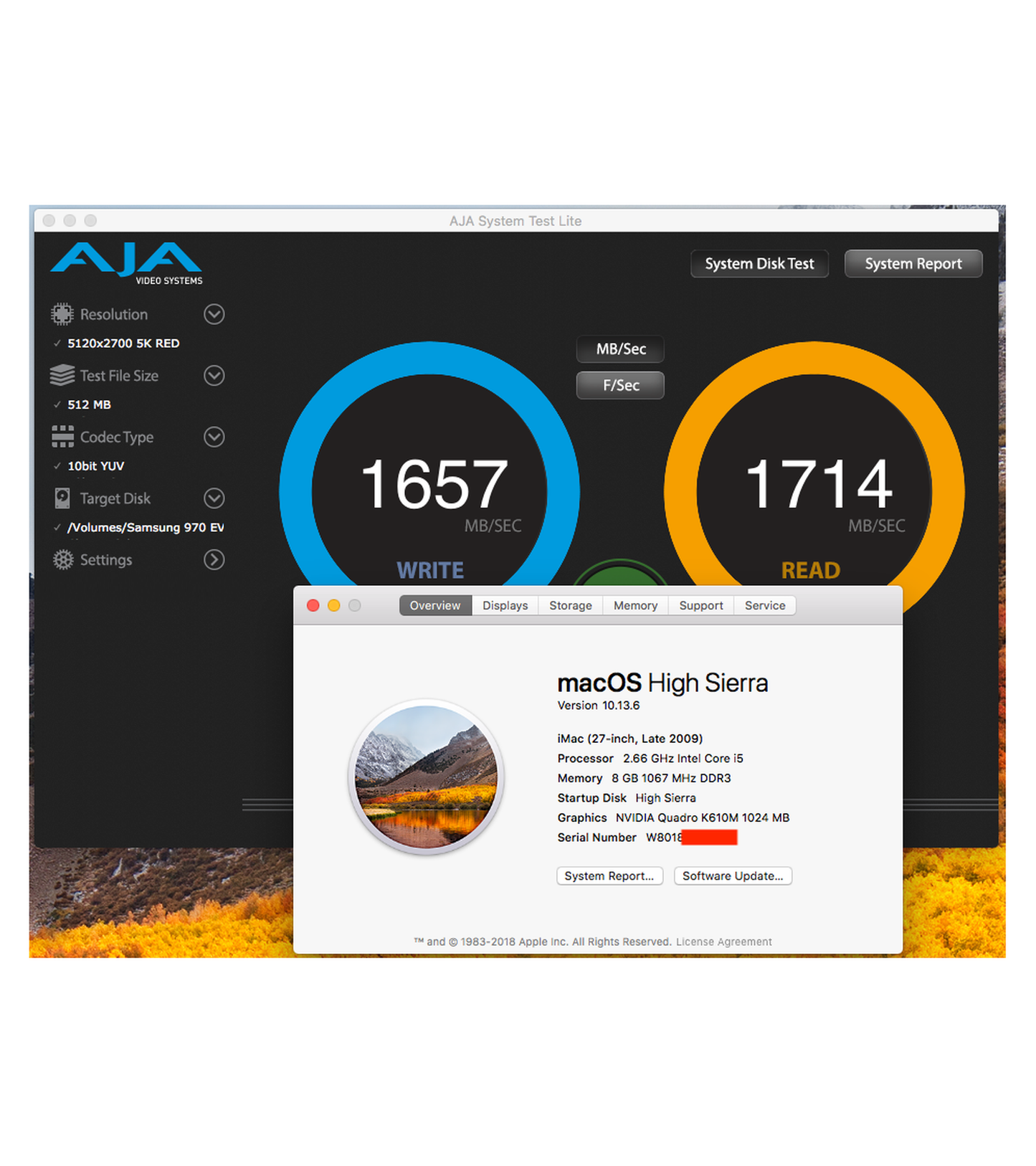

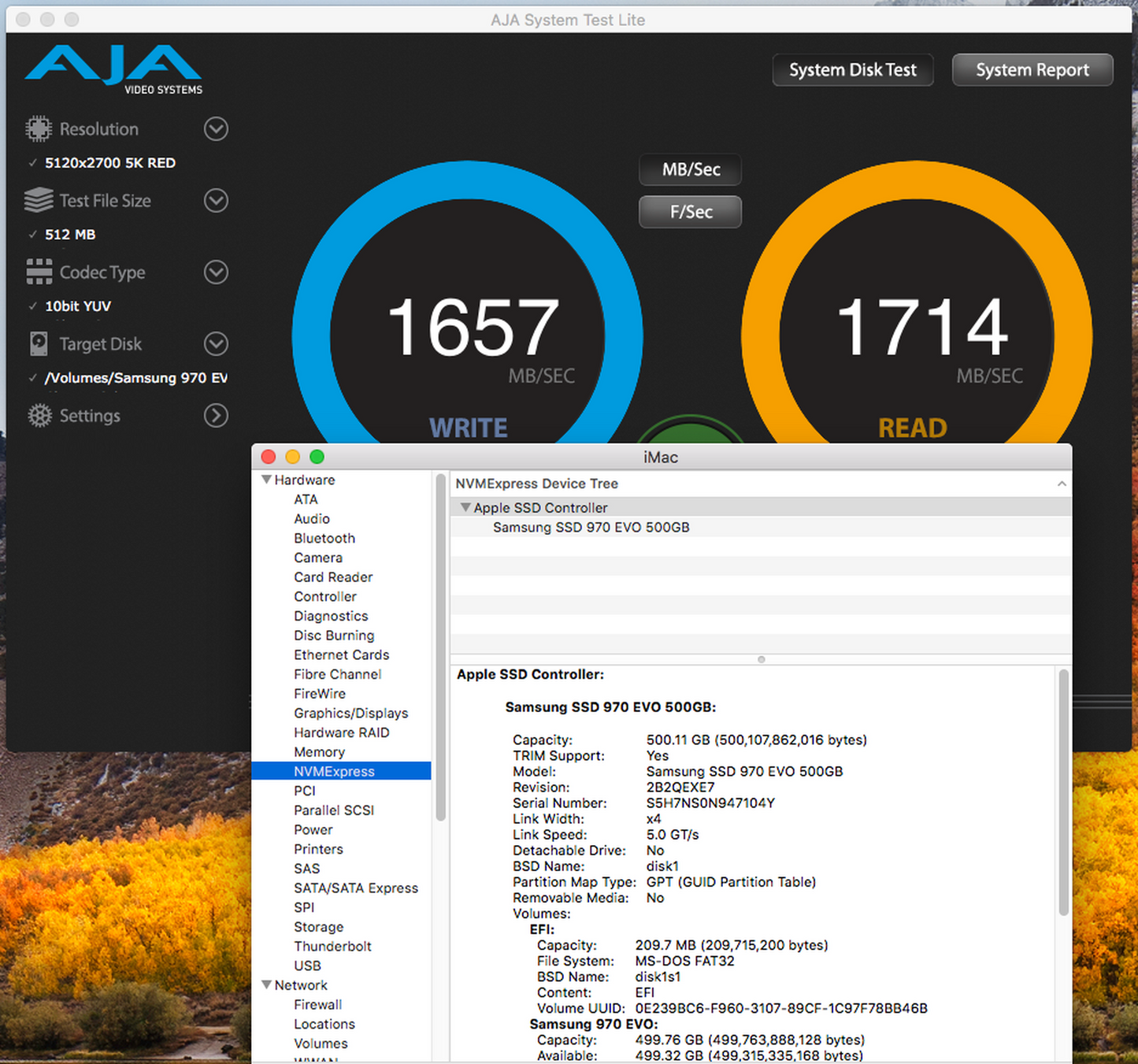

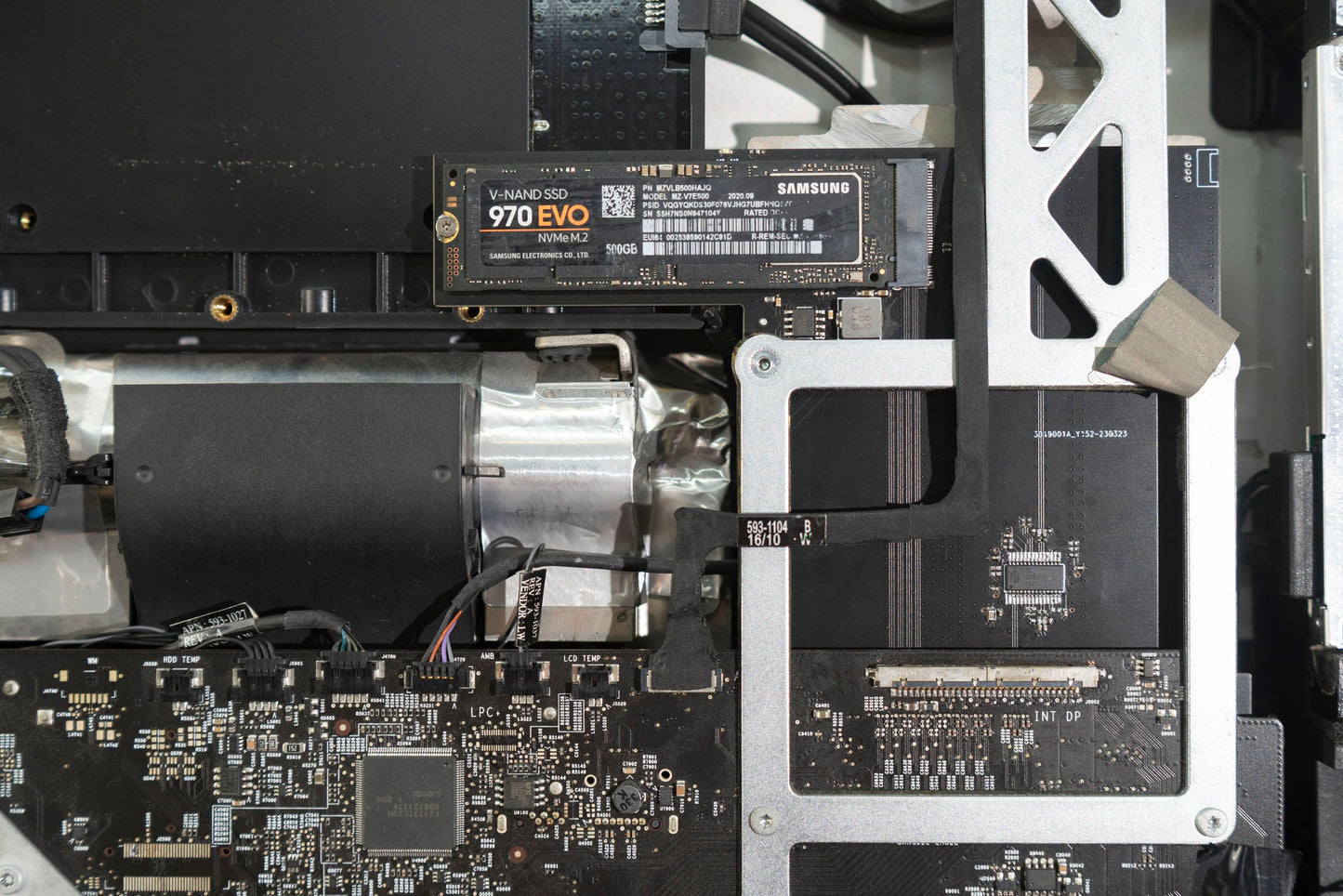

This is a DIY project intended for enthusiast with advanced soldering skills to add NVMe SSD to the A1311 / A1312 iMac (Thick iMac, not slim version). By default Apple shipped this iMac with SATA HDD or SATA SSD, that has a maxed out speed at 500MB/s. This breakout board adapter will allow you to install NVMe SSD to PCIe MXM slot, and you will get a maximum speed of +- 1500MB/s of read & write. This modification doesn't sacrifice any ports functionality, as it requires you activate PCIe Bifurcation from a single x16 to two x8.
Why did you make it?
We built it for fun, this project benefited from our first-for fun project, that is the NevBolt 1, NevBolt 2, X-GPU, Aito6, and Aito7. and we will continue to create it for M1 too.
Other reason to install this to your iMac?
This is a one time modification, that requires advanced soldering skills, but after installation the end user can easily remove/upgrade/reinstall the NVMe SSD himself without soldering in no time.
What is included in the kit?

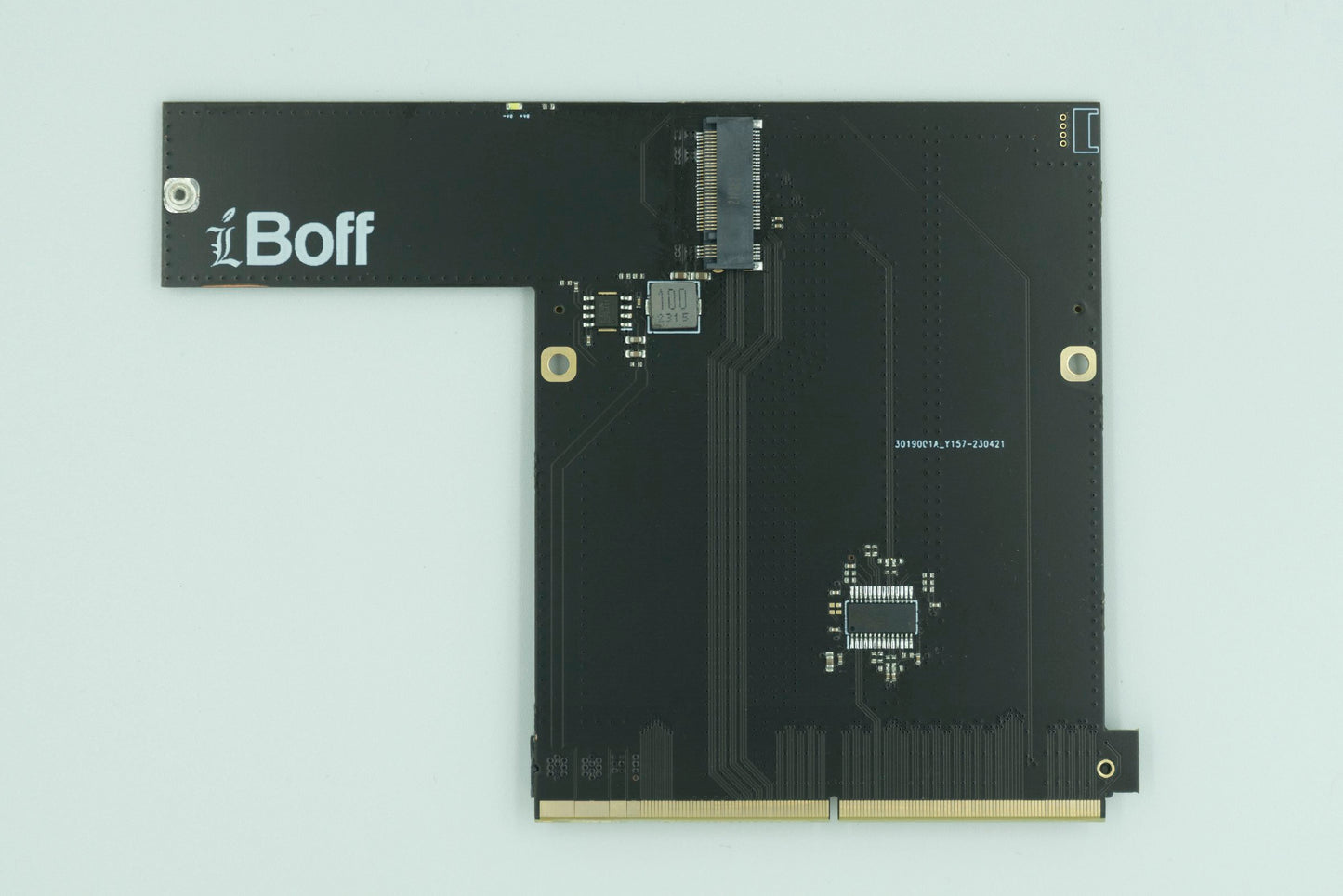

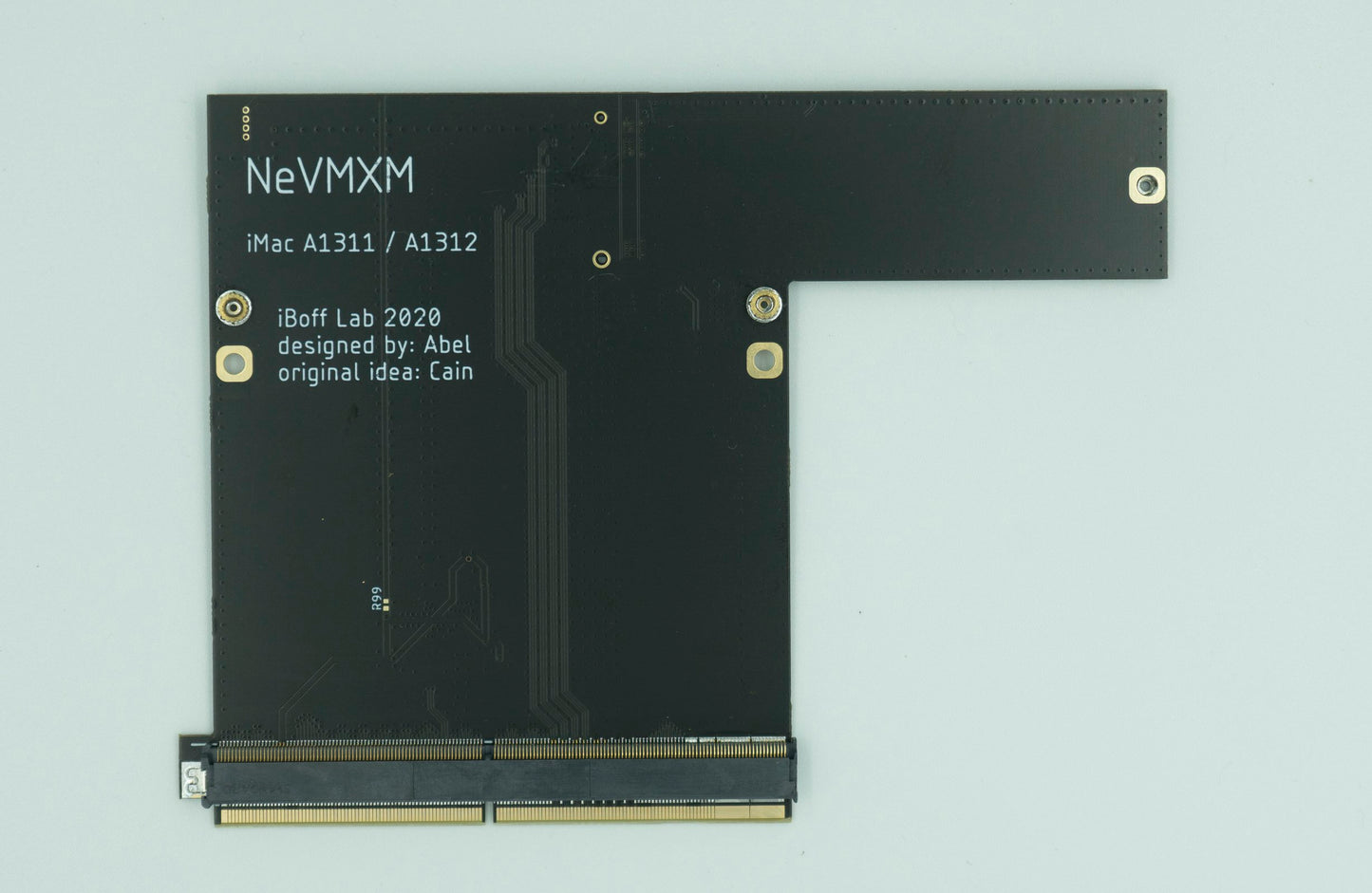

- 1x NevMXM adapter PCB (NVMe SSD not included)
- 16x 0402 SMD High Speed Inductor
- 1x 1Kohm SMD Resistor
You want us to solder/install it to your MacBook?
Contact our email at main.iboff@gmail.com or FaceBook at https://www.facebook.com/Logicboard.Macbook/
Custom & Duty Fee:
All international buyers are responsible to pay any custom fee or import tax that might be applied at his/her country. Please contact your local custom office/Fedex for more details about custom process and import tax. We do not accept any return & claim because of your country’s custom regulation rules / delays / fee! You are responsible for any VAT, tariff, duty, taxes, handling fees, brokerage charges, customs clearance charges, etc. that might be required by your country for importing goods! There is no way for iBoffRCC (the shipper) to predict your country's customs/fee habits, and if you can’t pay the required fees resulting in parcel disposal / delay / return - WE WILL NOT ISSUE ANY REFUND.
